Bike Setup
Photos Bike Setup Adventures Reviews

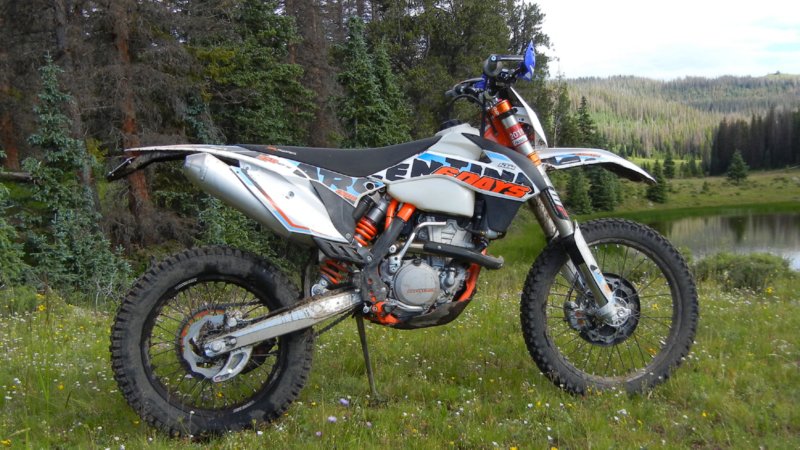

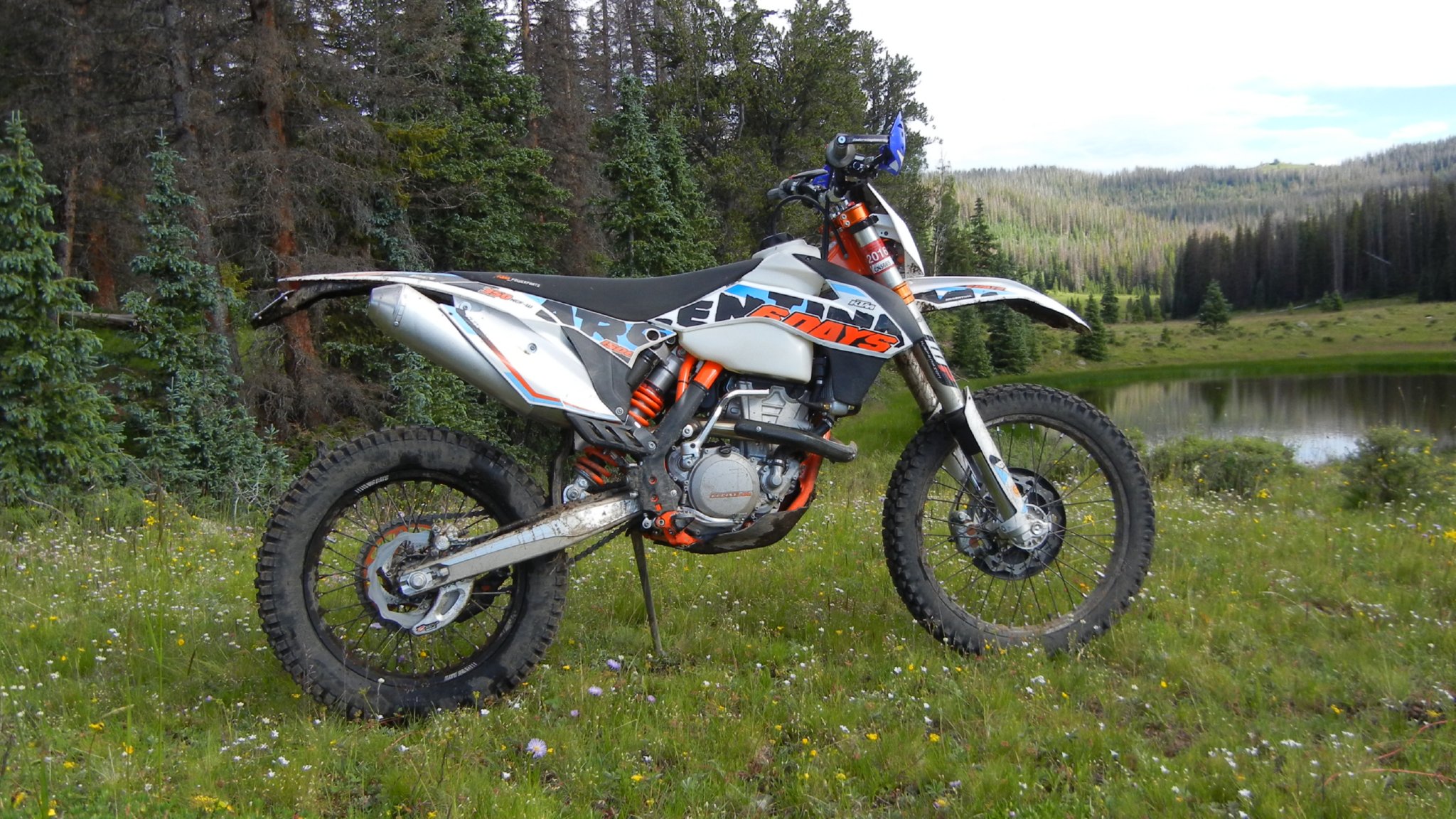

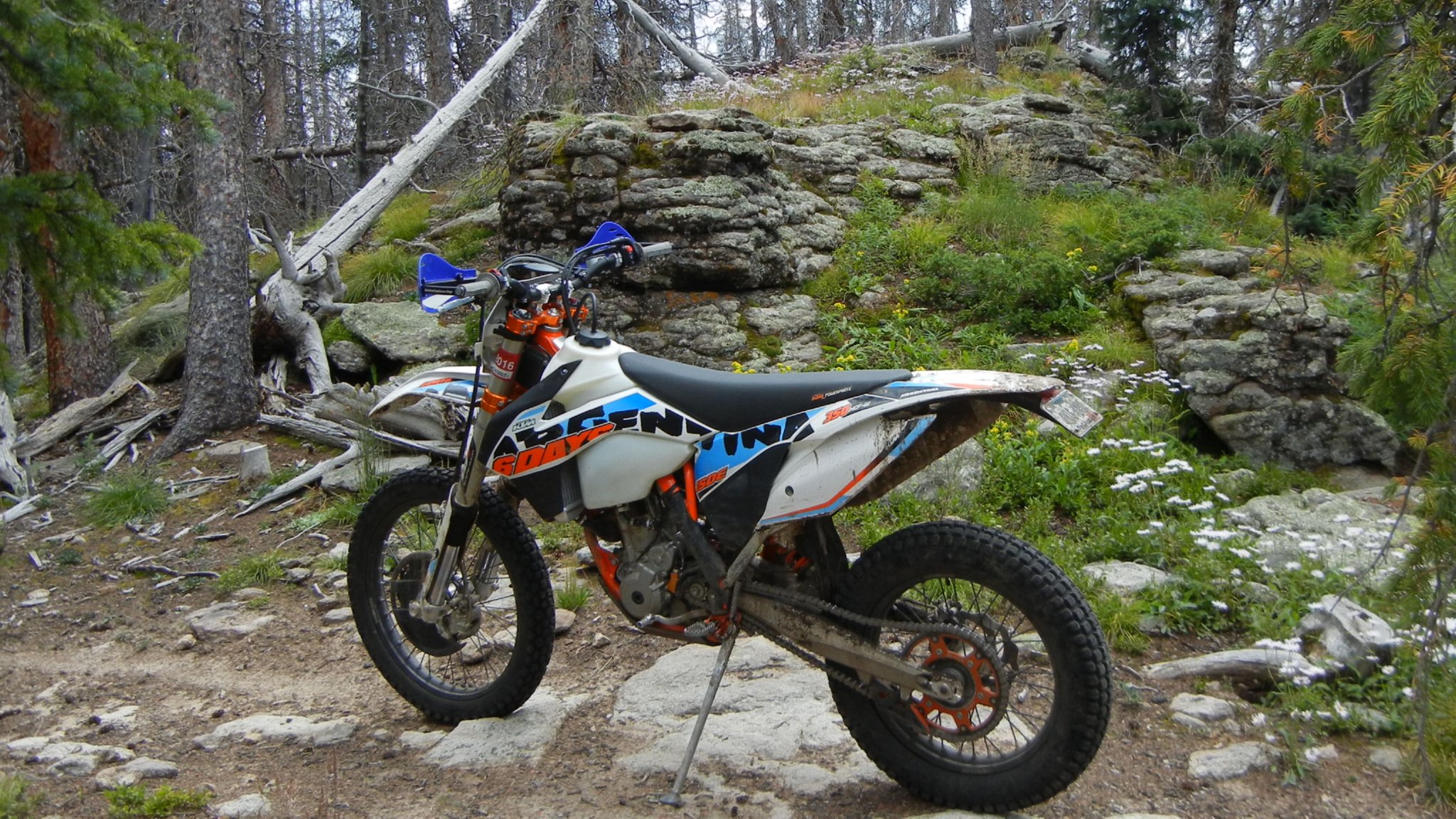

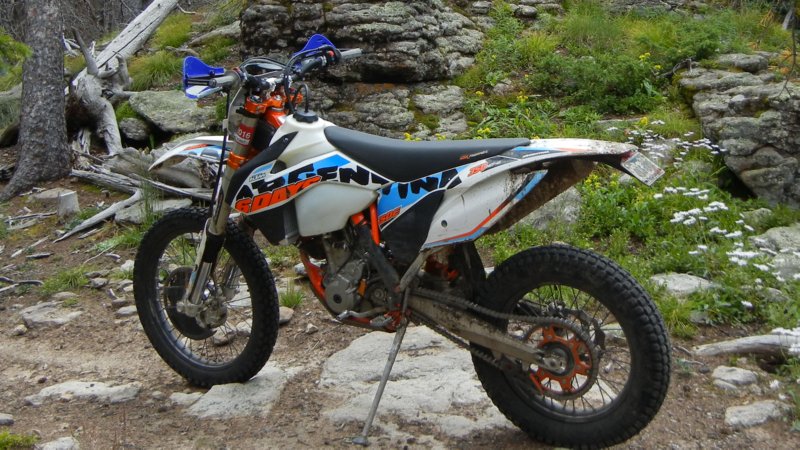

2015 KTM 350 XCF-W Six Days

  • Tire, Front - Kenda K270  (3.25-21, 15.5 psi) hard/rocky trails
  • Tire, Rear  - Pirelli MT-43 (4.00-18, 12 psi) hard/rocky trails
  • Tire, Front - Goldentyre GT216AA (90/100-21, 15 psi) soft/rocky trails
  • Tire, Rear  - Maxxis Trial Maxx (4.00-18, 12 psi) soft/rocky trails
  • Tubes - Metzler
  • Brakes, Front - 6days rotor & pads, 6days disk guard
  • Brakes, Rear - 6days rotor, Braking 891 SM1 pads, ZipTy SF115 disk guard
  • Handlebars - 6days cut to 31", 10mm EE bar risers
  • Handguards - Enduro Engineering evolution, G2 nylon bar end mounts
  • Grips - Renthal Soft
  • Throttle - G2 Ergonomics (cam 200)
  • Footpegs - IMS Bigfoot
  • Fuel tank - IMS 3.0 gal
  • Exhaust - Stock pipe, FMF Q4 hex muffler
  • Pipe guard - E-Line
  • Skidplate - 6days
  • Seat - KTM High (77207940400)
  • Battery - EarthX ETX12A lithium
  • Motor oil - Silkolene Pro 4 Plus 10W-50 full synthetic
  • Radiator cap - CV4 2.0
  • Gearing - Sunstar 12 / 6days 52
  • Chain - Stock
  • Chain guide - 6days
  • Brake light - Enduro Engineering hydraulic switch
  • Accessories - EE license plate holder and 6days mirror
  • Accessories - SAR start/kill switch & hi/lo/horn switch & horn
  • Fork skins - KTM
  • Fork bleeders - Motion Pro Micro Bleeders black
  • Fork valving - WP Factory Services, comp 14, reb 19
  • Fork springs - KTM 4.4 (91410085S)
  • Shock valving - Stock, high comp 2.5, low comp 22, reb 24
  • Shock spring - Factory Connection FCW-1 7.0-9.0

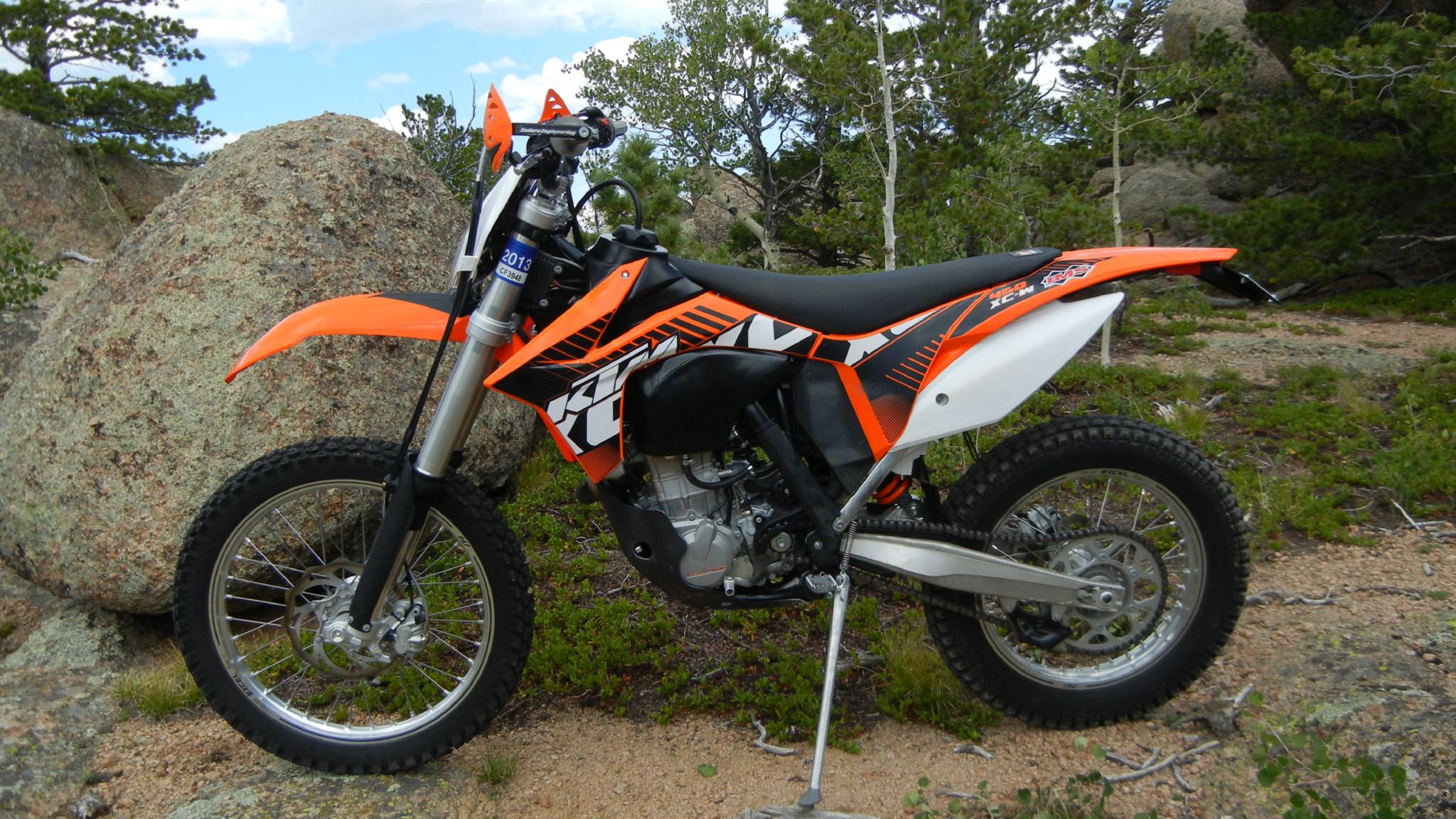

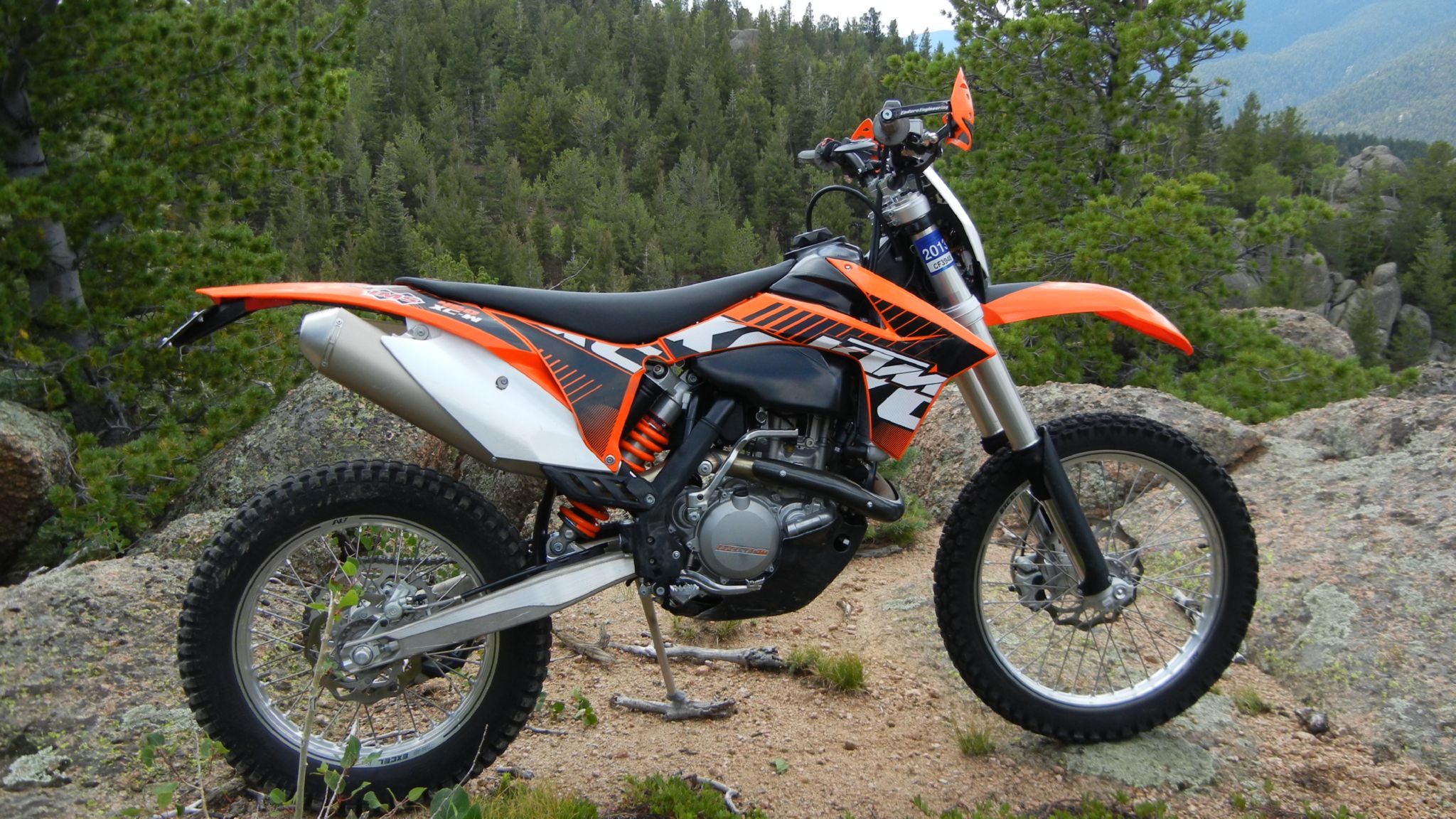

2012 KTM 450 XC-W

  • Tire, Front - Kenda K270  (3.25-21, 15.5 psi) hard/rocky trails
  • Tire, Rear  - Pirelli MT-43 (4.00-18, 12 psi) hard/rocky trails
  • Tire, Front - Pirelli Mid-Hard 554 (90/100-21, 15 psi) soft/rocky trails
  • Tire, Rear  - Kenda Equilibrium  (4.50-18, 12 psi) soft/rocky trails
  • Tubes - Metzler
  • Brakes, Front - Braking wave rotor, Braking 746 SM1 pads
  • Brakes, Rear - Braking wave rotor, Braking 891 SM1 pads
  • Handlebars - Renthal FatBar 609 (high), cut to 31"
  • Handguards - Enduro Engineering evolution, G2 nylon bar end mounts
  • Grips - Renthal Soft
  • Throttle - G2 Ergonomics (cam 200)
  • Shift lever - Hammerhead +5mm
  • Footpegs - IMS Bigfoot
  • Fuel tank - IMS 3.0 gal
  • Exhaust - Stock pipe, FMF Q4 muffler
  • Pipe guard - E-Line
  • Skidplate - KTM (78103190100)
  • Seat - KTM High (77207940400)
  • Battery - EarthX ETX12A lithium
  • Motor oil - Silkolene Pro 4 Plus 10W-50 full synthetic
  • Radiator cap - CV4 2.0
  • Gearing - Sunstar 12 / Renthal 52
  • Chain - Stock
  • Chain guide - TM Designworks
  • Brake light - Enduro Engineering hydraulic switch
  • Accessories - EE license plate holder and MSR mirror
  • Accessories - SAR start/kill switch & hi/lo/horn switch & horn
  • Fork skins - KTM
  • Fork protectors - Black 07 KTM (5900109400030)
  • Fork bleeders - Motion Pro Micro Bleeders black
  • Fork valving - WP Factory Services, comp 25/29, reb 19/19
  • Fork springs - KTM 4.6 (91410016S)
  • Shock valving - Stock, high comp 2.5, low comp 22, reb 21
  • Shock spring - Factory Connection FCW-2 7.5-9.7

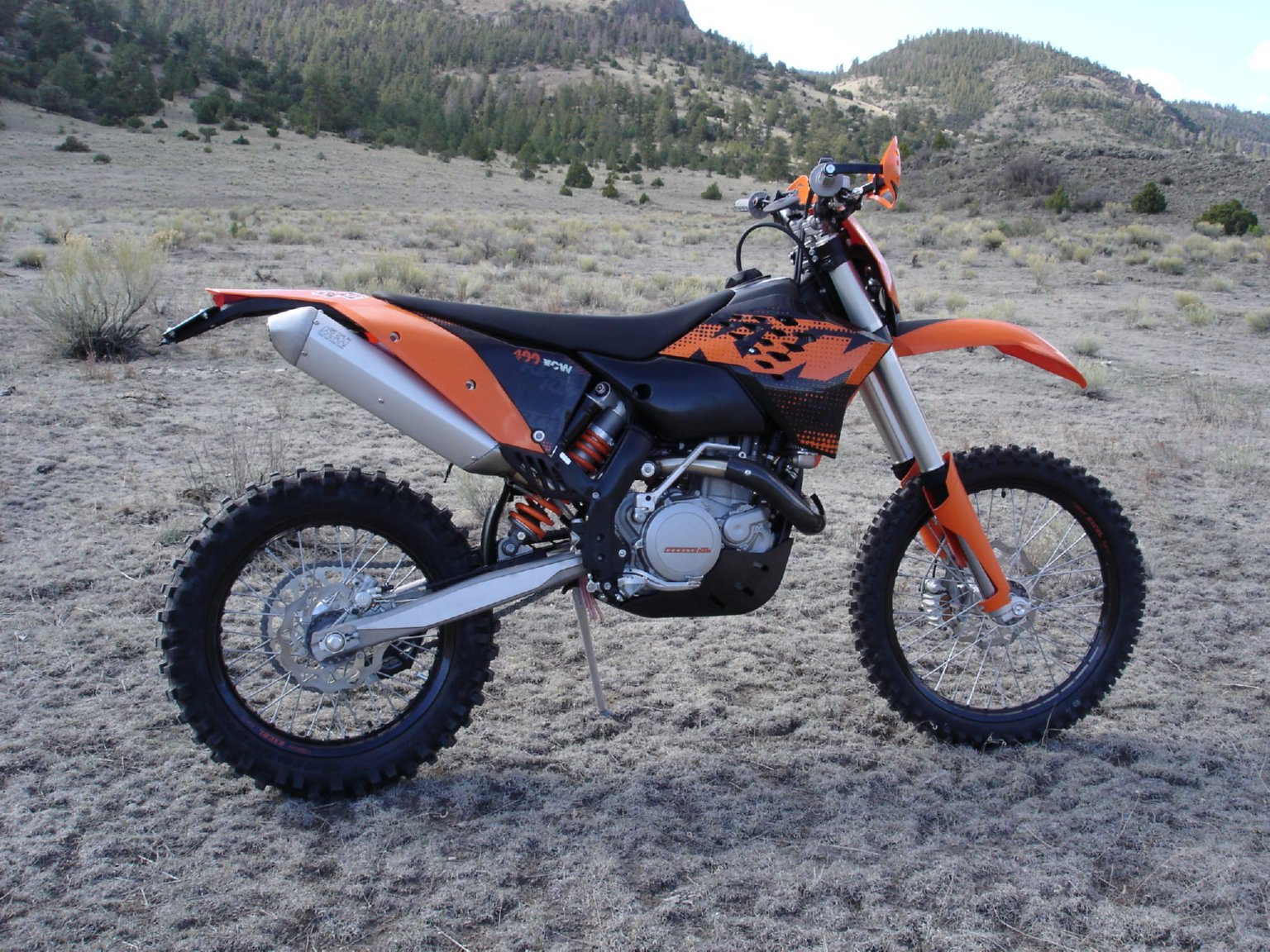

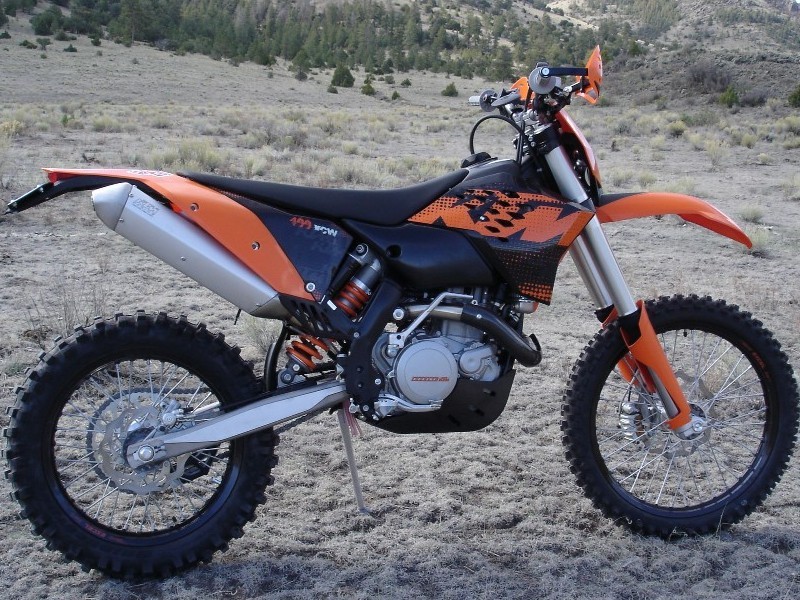

2009 KTM 400 XC-W

  • Tire, Front - Kenda K270  (3.25-21, 15.5 psi) hard/rocky trails
  • Tire, Rear  - Pirelli MT-43 (4.00-18, 12 psi) hard/rocky trails
  • Tire, Front - Pirelli Mid-Hard 554 (90/100-21, 15 psi) soft/rocky trails
  • Tire, Rear  - Kenda Equilibrium  (4.50-18, 12 psi) soft/rocky trails
  • Tubes - Metzler
  • Brakes, Front - Braking wave rotor, Braking 746 SM1 pads
  • Brakes, Rear - Braking wave rotor, Braking 891 SM1 pads
  • Handlebars - Stock, cut to 31"
  • Handguards - Enduro Engineering evolution
  • Grips - Renthal Soft
  • Throttle - G2 Ergonomics (cam 200)
  • Footpegs - IMS Pro-Series
  • Fuel tank - IMS 3.2 gal
  • Exhaust - Stock pipe, FMF Q4 muffler (#045152)
  • Pipe guard - E-Line
  • Skidplate - E-Line
  • Seat - Enduro Engineering 75-108 (standard height, firm foam)
  • Battery - EarthX ETX12A lithium
  • Motor oil - Silkolene Pro 4 SX 10W-40 full synthetic
  • Gear oil - Silkolene Comp Gear semi-synthetic
  • Gearing - Sunstar 12 / KTM 52
  • Chain - RK 520EXW 116
  • Chain guide - TM Designworks chain guide, chain slider & lower pad
  • Wheel spacers - Enduro Engineering - front & rear
  • Lighting kit - Enduro Engineering
  • Brake light - Enduro Engineering hydraulic switch
  • Accessories - EE license plate holder and MSR mirror
  • Accessories - SAR start/kill switch & hi/lo/horn switch and KTM horn
  • Fork skins - KTM
  • Fork protectors - Black 07 KTM (5900109400030)
  • Fork bleeders - KTM (SXS08125610)
  • Fork valving - Stock, comp 23/26, reb 24/24
  • Fork springs - Stock 4.6
  • Shock valving - Slavens Racing, high comp 2.0, low comp 16, reb 27
  • Shock spring - Factory Connection FCW-1 7.0-9.0
  • 10K jetting - OBDTQ (stock), clip 3, 40 pilot, 170 main, mixture 2 5/8
  • 10K squirt timing - In 5/8 turn from stock
  • Fuel mix adj screw - System Tech Racing
  • Accelerator pump cover - Scary Fast PowerShot
  • Carb insert - Scary Fast PowerNow rear wing
  • Water pump - KTM 78035955044 high flow impeller kit
  • Radiator cap - CV4 2.0
  • Coolant additive - Red Line Water Wetter

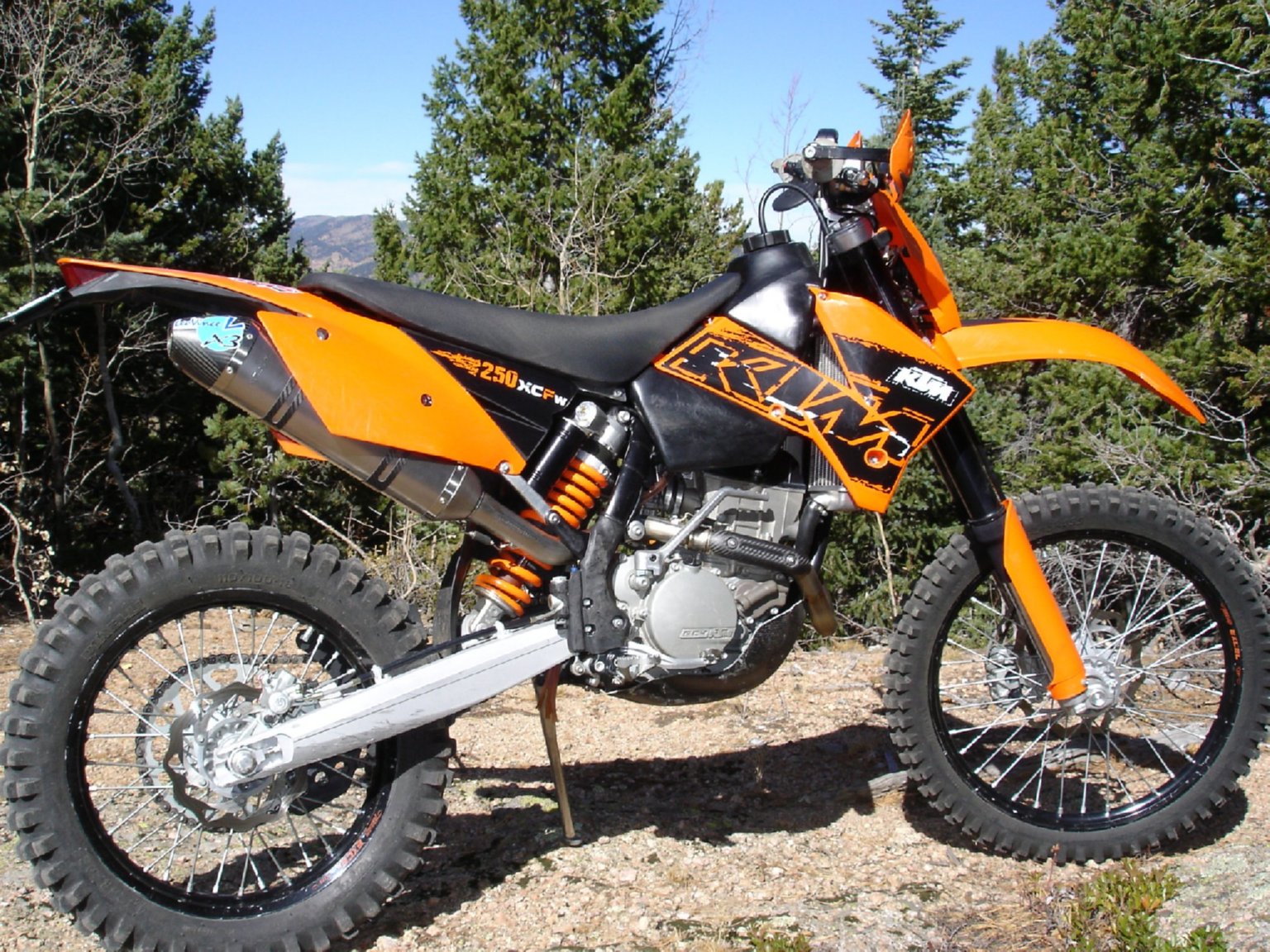

2007 KTM 250 XCF-W

  • Tire, Front - Kenda K270  (3.25-21, 15.5 psi) hard/rocky trails
  • Tire, Rear  - Pirelli MT-43 (4.00-18, 12 psi) hard/rocky trails
  • Tire, Front - Pirelli Mid-Hard 454 (90/100-21, 15 psi) soft/rocky trails
  • Tire, Rear  - Pirelli MT-16 (110/100-18, 13 psi) soft/rocky trails
  • Tubes - Metzler
  • Brakes, Front - Braking wave rotor, Braking 746 SM1 pads
  • Brakes, Rear - Stock rotor, EBC FA368X pads
  • Handguards - Enduro Engineering evolution
  • Handlebars - Renthal FatBar KTM-608, cut to 31"
  • Grips - Renthal Soft
  • Fuel tank - IMS 2.7 gal
  • Seat - Enduro Engineering (standard height, firm foam)
  • Exhaust - Stock pipe, FMF Q4 muffler
  • Pipe guard - E-Line
  • Skidplate - E-Line
  • Radiator cap - 1.8 Bar KTM # 77335016000 (from 2008)
  • Motor oil - Yamalube Semi-Syn 10/50
  • Gearing - Sunstar 12 / KTM 52
  • Chain - RK 520EXW 116
  • Chain guide - TM Designworks chain guide, chain slider & lower pad
  • Lighting kit - Enduro Engineering
  • Brake light - Enduro Engineering hydraulic switch
  • Side stand - BRAP!Offroad 1" kickstand extension with larger pad
  • Accessories - EE license plate holder and MSR mirror
  • Fork skins - KTM
  • Fork revalve - Slavens Racing
  • Shock revalve - Slavens Racing
  • Fork springs - 4.4
  • Shock spring - Slavens #2 progressive
  • 10K jetting - OBDTP, clip 3, 42 pilot, 50 leak, 165 main, mix 2 3/8
  • 10K squirt timing - In 5/8 turn from stock
  • Needle - OBDTP KTM # 59031034400 (from 450)
  • Fuel mix adj screw - System Tech Racing
  • Accelerator pump cover - Scary Fast Powershot
  • Carb insert - Scary Fast PowerNow rear wing
  • Water pump - KTM 77035955044 high flow impeller kit
  • Coolant additive - Red Line Water Wetter

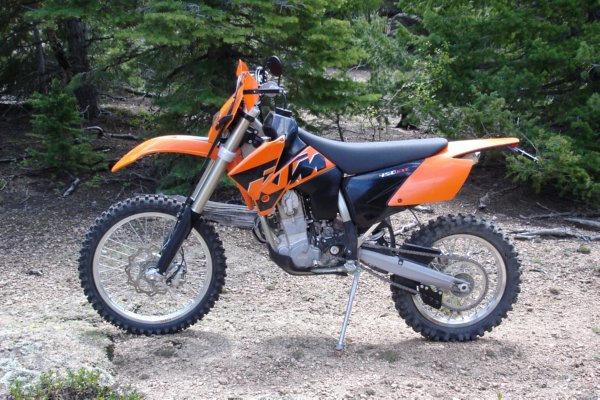

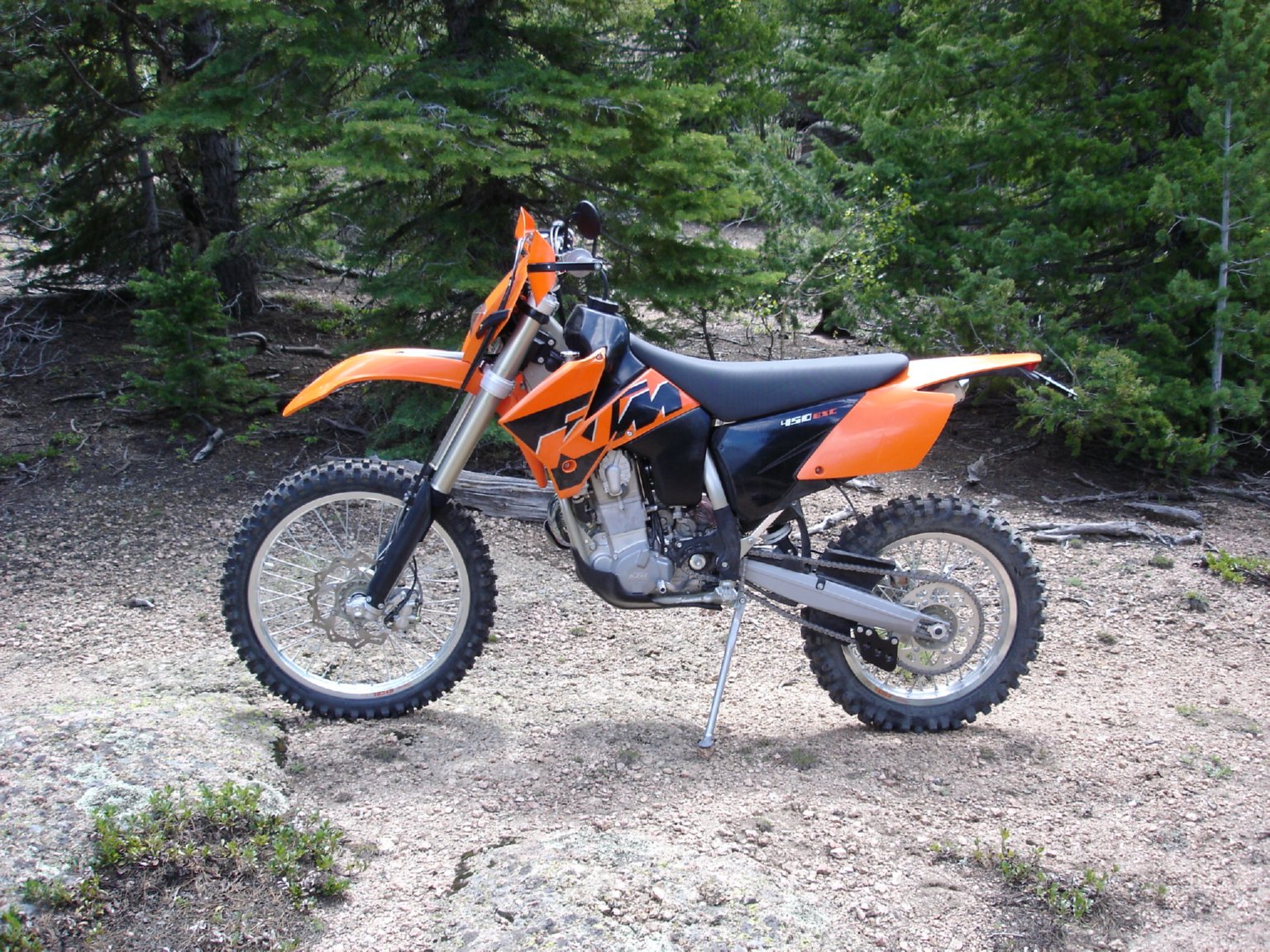

2005 KTM 450 EXC

  • Tire, Front - Pirelli MT-16 (80/100-21, 15.5 psi) wet/rocky trails
  • Tire, Rear  - Pirelli MT-16 (110/100-18, 13 psi) wet/rocky trails
  • Tire, Front - Kenda K270  (3.25-21, 16 psi) dry/dual-sport
  • Tire, Rear  - Pirelli MT-21 (120/90-18, 13 psi) dry/dual-sport
  • Tubes - Metzler
  • Brakes, Front - Braking wave rotor, Braking 746 SM15 pads
  • Brakes, Rear - Braking solid rotor, EBC FA368X pads
  • Handguards - Enduro Engineering
  • Grips - Renthal Soft
  • Throttle - G2 Ergonomics (cam 200)
  • Fuel tank - IMS 3.1 gal
  • Silencer S/A - CRD Absolute Performance II #7743US (<94db)
  • Seat - Enduro Engineering (standard height, firm foam)
  • Skidplate - KTM
  • Motor Oil - Silkolene Comp 4 SX 20/50
  • Gearing - Sunstar 13 / KTM 52
  • Chain - RK 520EXW 116
  • Chain guide - TM Designworks
  • Brake light - Enduro Engineering hydraulic switch
  • Accessories - EE license plate holder and Acerbis mirror
  • Radiator guards - KTM black steel, black plastic protectors
  • Pipe guard - E-Line (special request, extra thick)
  • Fork skins - Summers Racing
  • Fork revalve - Slavens Racing
  • Shock revalve - Slavens Racing
  • Fork springs - 4.5
  • Shock spring - PDS 8 (81 - 99.5)
  • 10K jetting - OBDTN, clip 3, 40 pilot, 170 main, mixture 2.5
  • 10K squirt timing - In 1.0 turn from stock
  • Accelerator pump cover - Boyesen QuickShot
  • Carb velocity insert - Slavens Racing "No Bog"
  • Carb bell - Power Now


2004 450 EXC 10K Jetting (No Bog, Power Now and QuickShot):
OBDTM, clip 3, 40 pilot, 168 main, mixture 2.5 out, squirt 1.0 in.
Without QuickShot: 170 main, mixture 2.75 out, squirt 1.8 in.


2003 450 EXC 10K Jetting (No Bog and Power Now):
OBDTM, clip 4, 42 pilot, 168 main, mixture 2.0 out, squirt 0.5 in.
Pulls richer low-end jetting than the 2004. Smooth and tractable.
